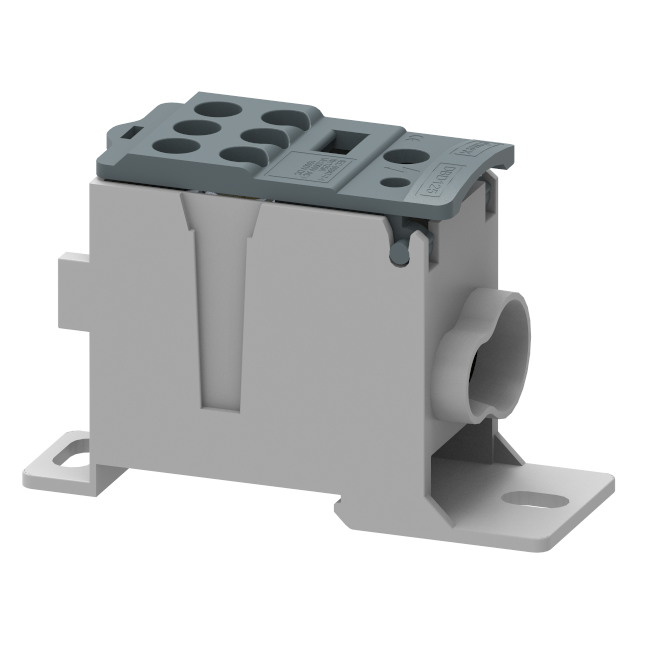

DBD125

Approvals

CE Mark Conforming to IEC Specification

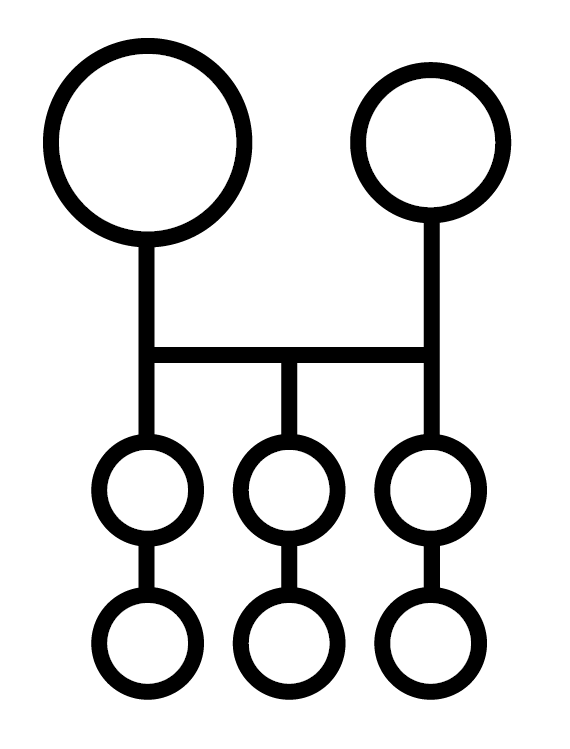

Line Diagram


General Data

Type DBD125
Wire termination Technology Screw Connection
Rating 1000 V / 125 A / IC-35 mm², OG-1x16 mm², 6x16 sq.mm / IC-1X5 Nm, OG-1X3 Nm, 6X3 Nm
GTIN / Harmonize Custom Code NAV
Standard Packing Qty (in No) 1
Country of Origin India

Thickness (mm) 29.2
Thickness (inches) 1.15
Width (mm) 75.5
Width (inches) 2.97
Height (mm) 48.45
Height (inches) 1.91
Weight For Standard Packing Qty (kg) 0.16

Housing Polyamide 6,6
Clamping Material Brass
Standard Colour Gray

Solid Wire - Min (sq.mm) IC-10 mm², OG-6 mm², 2.5
Solid Wire - Max (sq.mm) IC-35 mm², OG-16 mm², 16

Standard IEC 60947-7-1
Rated Voltage (V) 1000
Rated Current (A) 125
Rated Cross Section (sq.mm) IC-35 mm², OG-1x16 mm², 6x16
Short Time Withstand Current 4.2
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3

DIN Rail Perforated
CHKDS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
  • Length : 2000 mm
CHKS
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm - Perforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
DIN Rail, Unperforated
CHKD
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 15 mm
  • Width : 35 mm
  • Thickness : 1.5 mm
CHK
  • 35 mm DIN Rail with Standard lengths 300 mm , 500 mm , 1000 mm , Unperforated
  • Height : 7.5 mm
  • Width : 35 mm
  • Thickness : 1 mm
End Cap
CHKENDCAP
  • END COVER/ CAP FOR CHK CHANNEL
  • Height : 14 mm
  • Width : 9 mm
  • Length : 41.5 mm
End Clamp
DCKN10
  • TS35 DIN rail mounted end clamp without fixing screws , Color - Grey
  • Height : 35 mm
  • Width : 10 mm
  • Length : 43.5 mm
SCUN
  • TS35 , TS32 DIN rail mounted end clamp with fixing screws , Color - Grey
  • Height : 35.5 mm
  • Width : 9.5 mm
  • Length : 50.6 mm
Marker For Terminal Blocks
LABEL KN12
  • Snap on type PVC marking Label , Type - KN 12
  • Height : 2.43 mm
  • Width : 12 mm
  • Length : 8.5 mm
Marker carriers
SCUNMLH
  • Universal rail mounted end clamp with fixing screws & marking lable holder , Type - SCUNMLH
  • Height : 53.5 mm
  • Width : 11 mm
  • Length : 50.6 mm
DCKNMLH
  • 35 mm rail mounted end clamp with marking lable holder
  • Height : 45 mm
  • Width : 10 mm
  • Length : 43.5 mm
