Feed Through Terminal Blocks

Feed Through Terminal Blocks Manufacturer

Feed Through Terminal Blocks

'elmex' feed-through terminal blocks are electrical connectors used to securely pass current through a system while organizing wires. They typically have two aligned connection points (input and output) and with Bolt connections technology. Mounted on DIN rails or panels, they save space, are often color-coded for easy identification, and are used in control panels, distribution boxes, and industrial automation. To use them, select the correct type.

Feed Through Terminal Blocks Manufacturer and Supplier in India – Elmex

Products

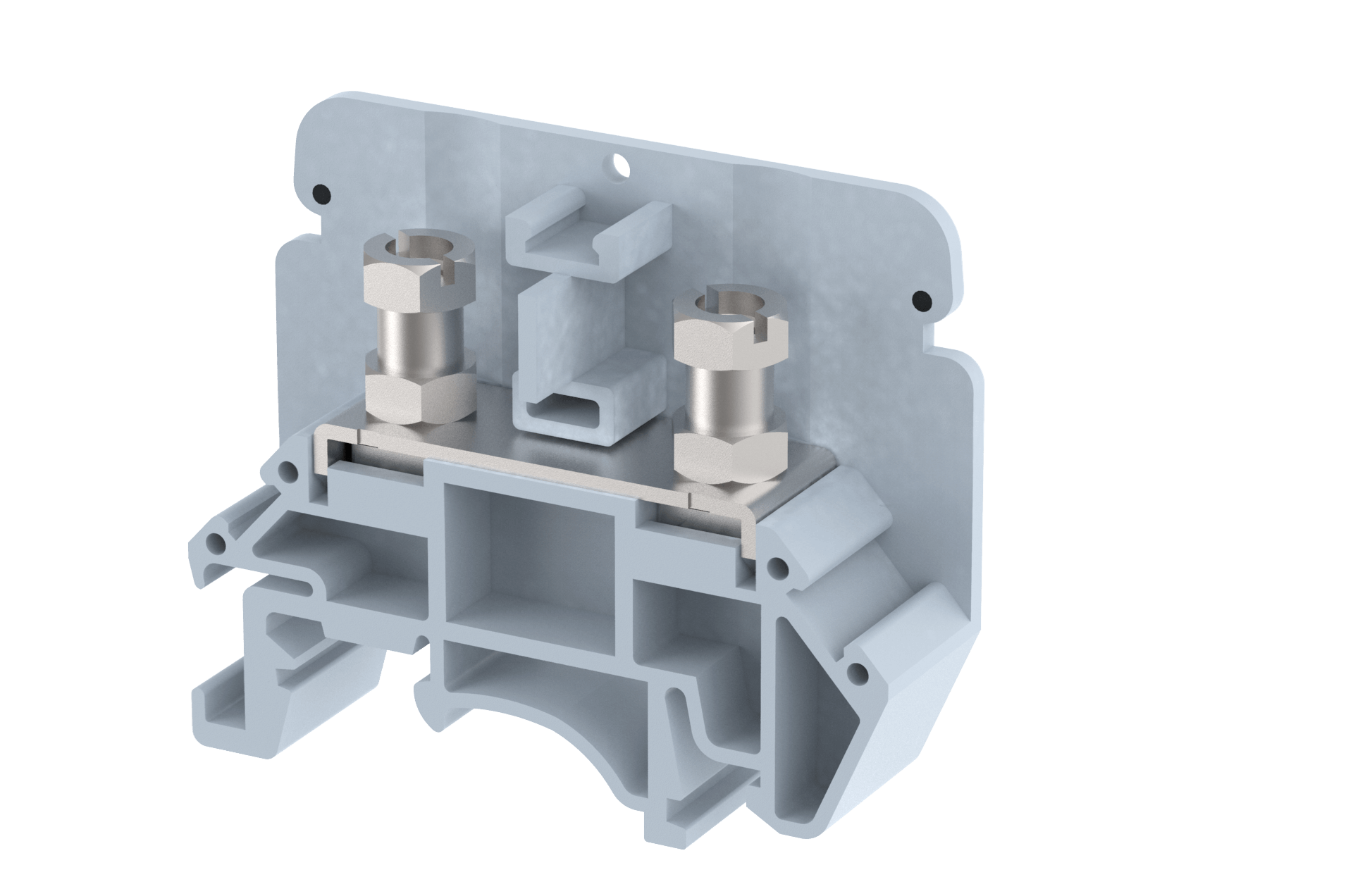

KATM4

UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA D mark Certification for Denmark CE mark for explosion-proof Approval as per ATEX directive S Mark Certification for Sweden FI Mark Certification for Finland N Mark Certification for Norway
  • IEC : 1000 V / 57 A / 10 sq.mm / 1.2 Nm
  • Thickness : 13 mm / 0.51 inches
  • Width : 50 mm / 1.97 inches
  • Height : 41.4 mm / 1.63 inches

OAT25

CE Mark Conforming to IEC Specification IEX Ex CE mark for explosion-proof Approval as per ATEX directive
  • IEC : 1000 V / 125 A / 35 sq.mm / 2.5 Nm
  • Thickness : 18 mm / 0.71 inches
  • Width : 60 mm / 2.36 inches
  • Height : 63 mm / 2.48 inches

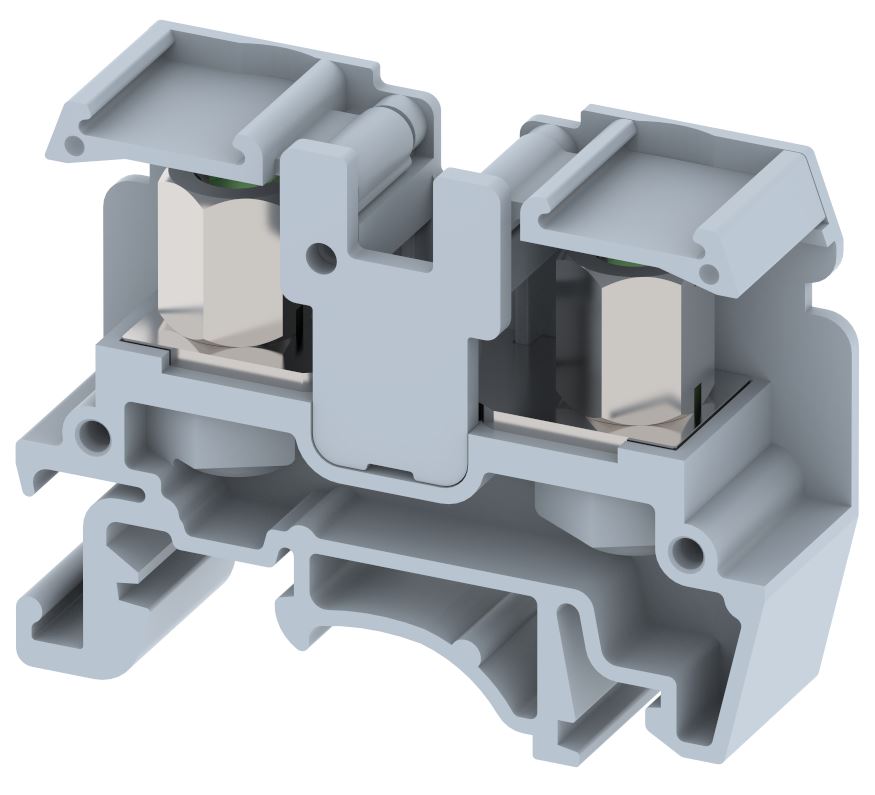

ONTM5-16C

CE Mark Conforming to IEC Specification
  • IEC : 1000 V / 76 A / 16 sq.mm / 2 Nm
  • Thickness : 13 mm / 0.51 inches
  • Width : 48 mm / 1.89 inches
  • Height : 36.5 mm / 1.44 inches

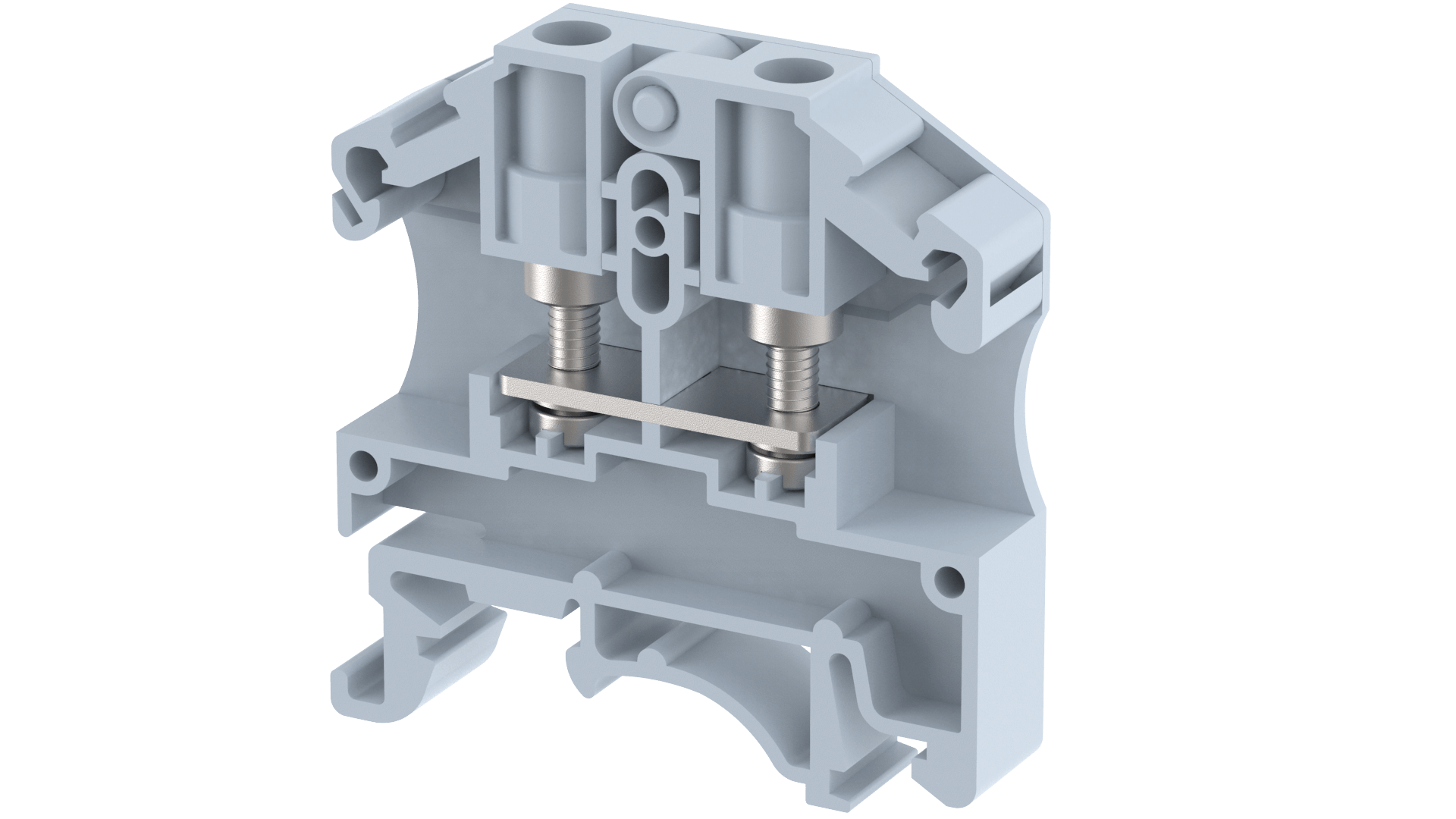

OAT2.5

UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA CE mark for explosion-proof Approval as per ATEX directive
  • IEC : 1000 V / 41 A / 6 sq.mm / 1.2 Nm
  • Thickness : 9 mm / 0.35 inches
  • Width : 44.2 mm / 1.74 inches
  • Height : 45.2 mm / 1.78 inches

OAT6

UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA CE mark for explosion-proof Approval as per ATEX directive
  • IEC : 1000 V / 57 A / 10 sq.mm / 1.5 Nm
  • Thickness : 11 mm / 0.43 inches
  • Width : 44.5 mm / 1.75 inches
  • Height : 51 mm / 2.01 inches

ONTM4-10C

CE Mark Conforming to IEC Specification
  • IEC : 1000 V / 57 A / 10 sq.mm / 1.2 Nm
  • Thickness : 13 mm / 0.51 inches
  • Width : 48 mm / 1.89 inches
  • Height : 36.5 mm / 1.44 inches

ONTM3-6C

CE Mark Conforming to IEC Specification
  • IEC : 1000 V / 41 A / 6 sq.mm / 0.5 Nm
  • Thickness : 9 mm / 0.35 inches
  • Width : 48 mm / 1.89 inches
  • Height : 36.5 mm / 1.44 inches
