High-Current Terminal Blocks

High-Current Terminal Blocks Manufacturer in India

High-Current Terminal Blocks

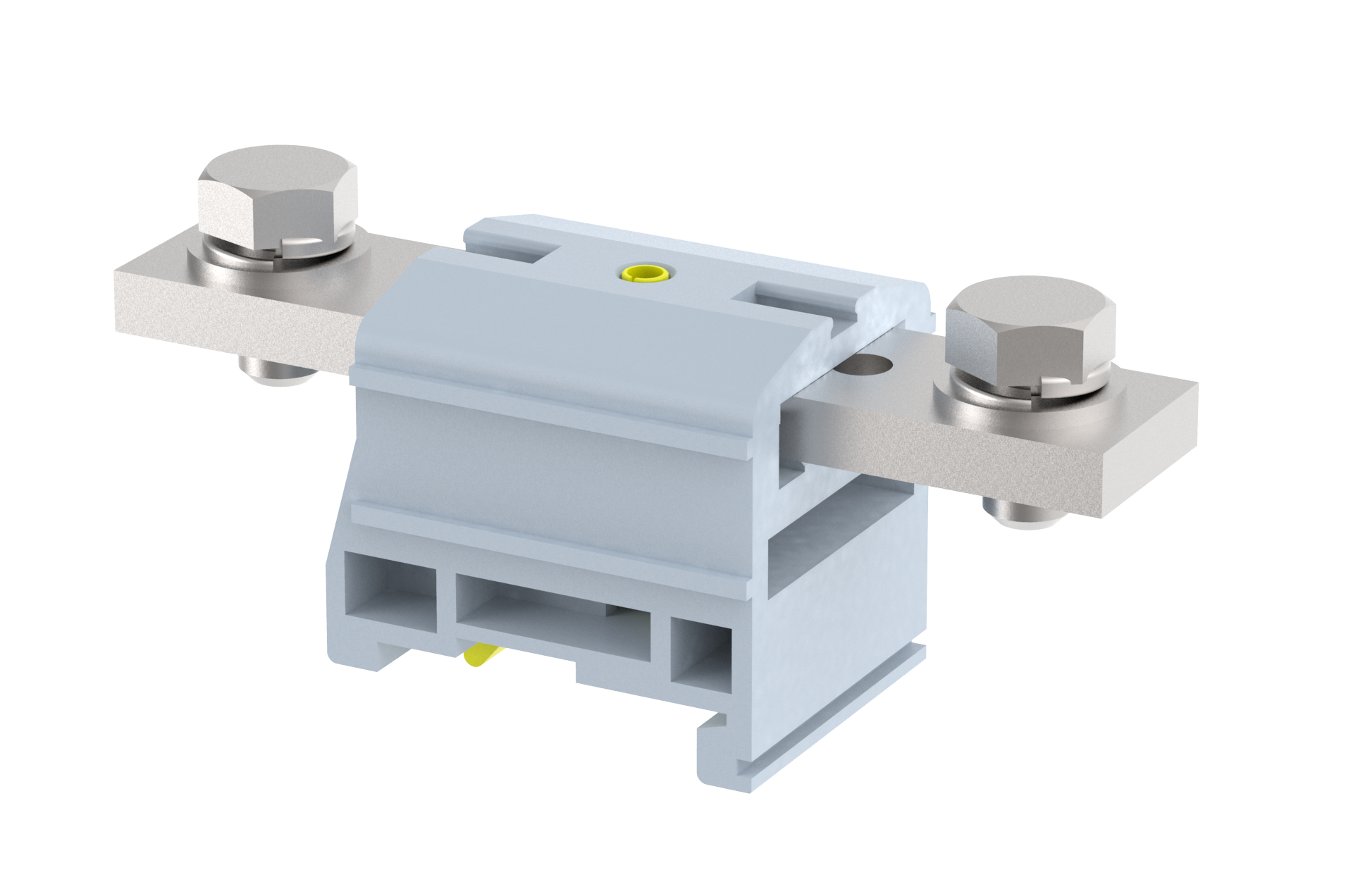

'elmex' offers a range of Power/Bus-Bar/High Current Terminals for solid and stranded cables with fork or ring lugs. These terminals include models like DPBB50, 70, and 120, rated up to 269 Amps. Safety features include partition plates, barrier plates, and transparent covers for added protection. Elmex also offers a SPT design with hinged covers, making it finger-safe without requiring additional covers. These terminals support 35 sq. mm and 70 sq. mm cables, with current ratings of 140 Amps and 192 Amps, and Hinged covers are available in various colors as required optionally.

High-Current Terminal Blocks Manufacturer and Supplier in India – Elmex

Products

SPT70

IEX Ex UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA CE mark for explosion-proof Approval as per ATEX directive
SPT70 Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex View PDF
  • IEC : 1000 V / 192 A / 70 sq.mm / 6 Nm
  • Thickness : 32 mm / 1.26 inches
  • Width : 179 mm / 7.05 inches
  • Height : 70.6 mm / 2.78 inches

SPT35XL

CE Mark Conforming to IEC Specification IEC CB LR : Lloyd’s Register IEX Ex UL Recognition for USA CE mark for explosion-proof Approval as per ATEX directive
SPT35XL Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex View PDF
  • IEC : 1000 V / 125 A / 35 sq.mm / 3 Nm
  • Thickness : 27 mm / 1.06 inches
  • Width : 136.2 mm / 5.36 inches
  • Height : 58.48 mm / 2.3 inches

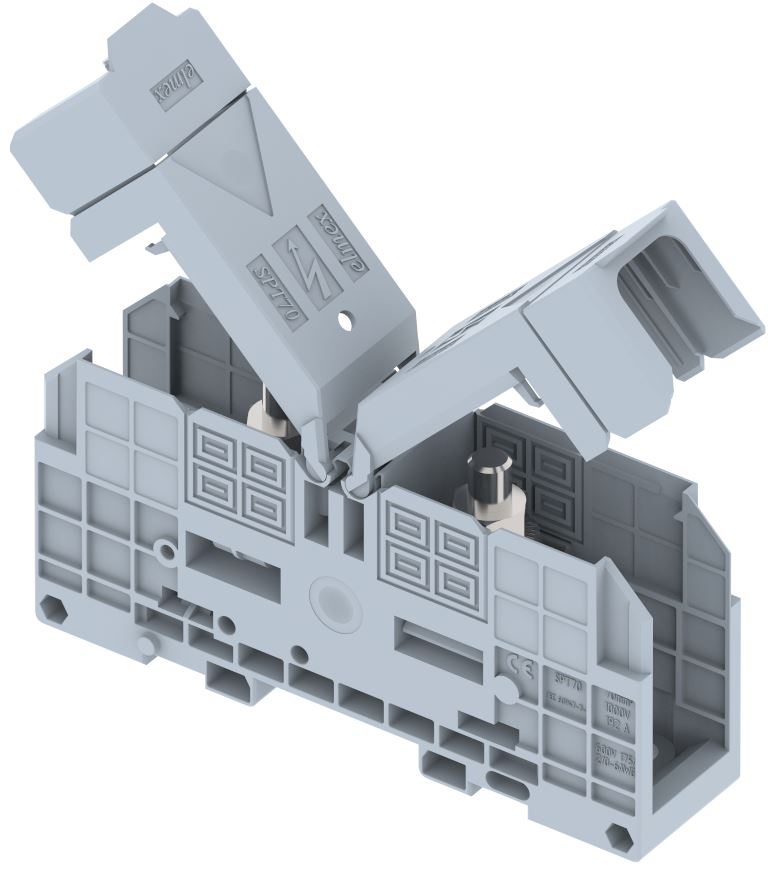

SPT70XL

CE Mark Conforming to IEC Specification IEC CB LR : Lloyd’s Register IEX Ex UL Recognition for USA CE mark for explosion-proof Approval as per ATEX directive
SPT70XL Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex View PDF
  • IEC : 1000 V / 192 A / 70 sq.mm / 6 Nm
  • Thickness : 32 mm / 1.26 inches
  • Width : 179 mm / 7.05 inches
  • Height : 70.6 mm / 2.78 inches

SPT35

IEX Ex UL Recognition for USA CE Mark Conforming to IEC Specification CSA Recognition for Canada & USA CE mark for explosion-proof Approval as per ATEX directive
SPT35 Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex View PDF
  • IEC : 1000 V / 140 A / 35 sq.mm / 3 Nm
  • Thickness : 27 mm / 1.06 inches
  • Width : 136.2 mm / 5.36 inches
  • Height : 58.48 mm / 2.3 inches

SPT95XL

UL Recognition for USA IEC CB LR : Lloyd’s Register IEX Ex CE Mark Conforming to IEC Specification CE mark for explosion-proof Approval as per ATEX directive
SPT95XL Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex View PDF
  • IEC : 1000 V / 232 A / 95 sq.mm / 6 Nm
  • Thickness : 32 mm / 1.26 inches
  • Width : 179.2 mm / 7.06 inches
  • Height : 70.6 mm / 2.78 inches

SPT95

CE Mark Conforming to IEC Specification IEX Ex UL Recognition for USA CE mark for explosion-proof Approval as per ATEX directive
SPT95 Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex View PDF
  • IEC : 1000 V / 232 A / 95 sq.mm / 6 Nm
  • Thickness : 32 mm / 1.26 inches
  • Width : 179.2 mm / 7.06 inches
  • Height : 70.6 mm / 2.78 inches

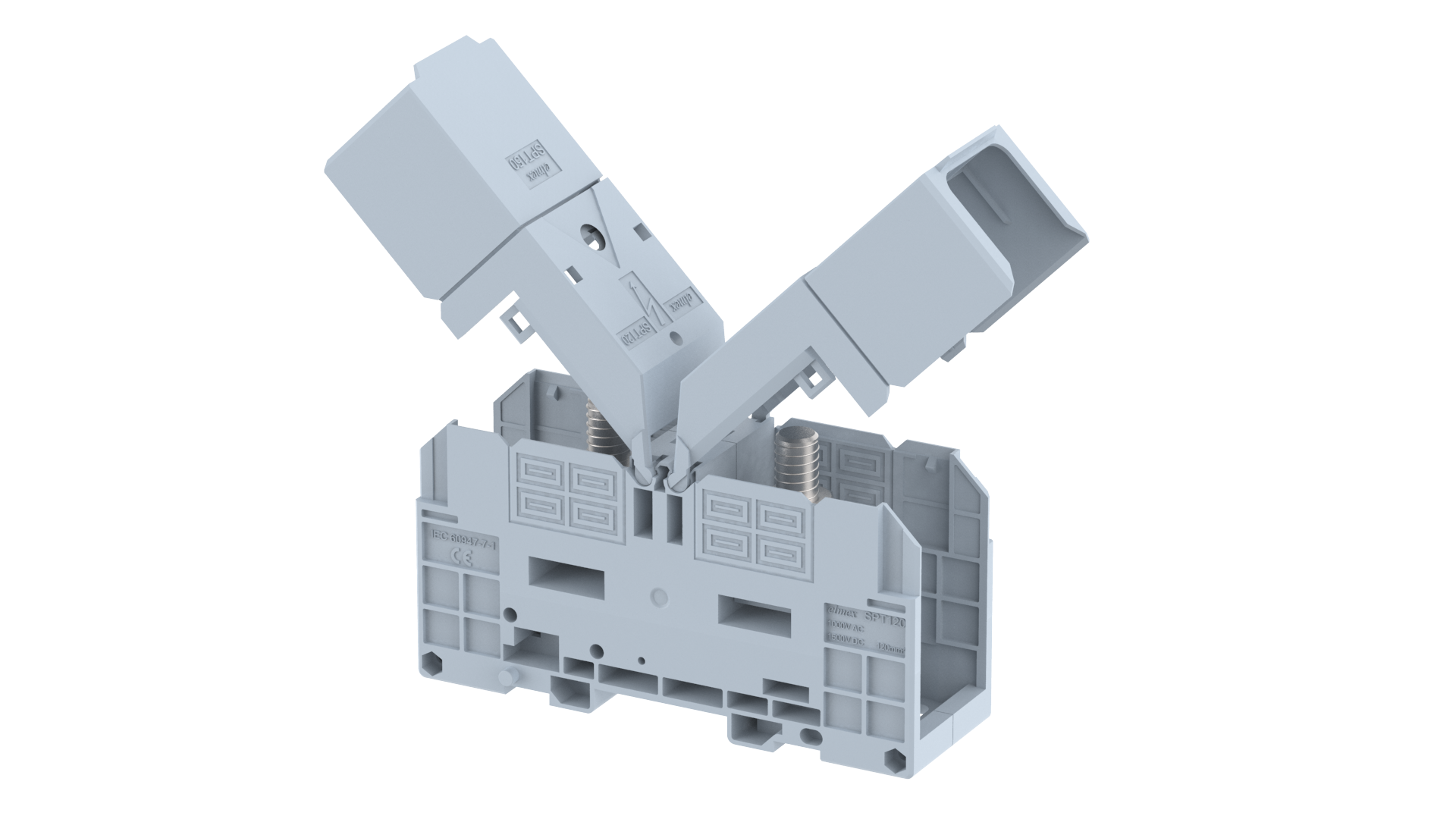

SPT120

CE Mark Conforming to IEC Specification IEX Ex UL Recognition for USA CE mark for explosion-proof Approval as per ATEX directive
SPT120 Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex View PDF
  • IEC : 1000 V / 269 A / 120 sq.mm / 10 Nm
  • Thickness : 42 mm / 1.65 inches
  • Width : 225.7 mm / 8.89 inches
  • Height : 80.3 mm / 3.16 inches

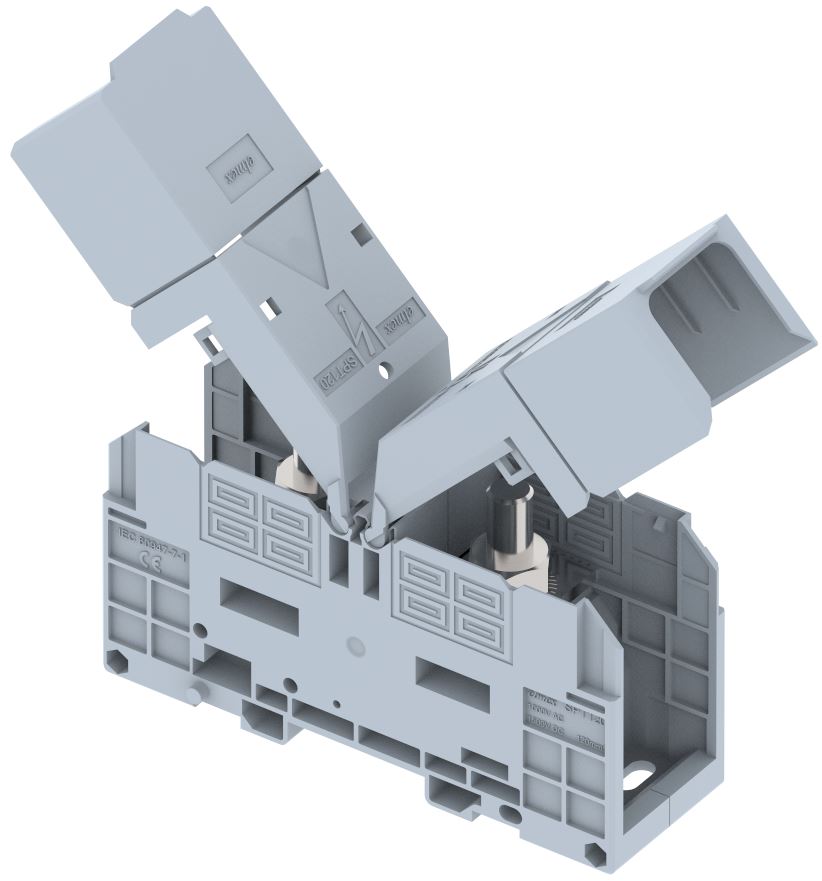

SPT120XL

CE Mark Conforming to IEC Specification IEC CB LR : Lloyd’s Register IEX Ex UL Recognition for USA CE mark for explosion-proof Approval as per ATEX directive
SPT120XL Terminal Blocks Bolt Connection Manufacturer and Supplier in India – Elmex View PDF
  • IEC : 1000 V / 269 A / 120 sq.mm / 10 Nm
  • Thickness : 42 mm / 1.65 inches
  • Width : 225.7 mm / 8.89 inches
  • Height : 80.3 mm / 3.16 inches
