April 24, 2026
An Elevator is an enclosed cabin that transports people and goods vertically between floors in a building. Escalators, in contrast, are motor-driven moving staircases designed to carry large volumes of pedestrian traffic over short vertical distances. While both systems move people between levels, they utilize distinct mechanisms and are suited for different applications.
Behind the seamless operation of elevators and escalators relies on crucial components like Slim Relay, Modular Relay, Phase Indicator, Timer, and Terminal Block, which provides the precise and secure electrical connections necessary for reliable performance. For this high-stake environment, Elmex Controls Pvt Ltd offers robust solutions that power the control panels of elevators and escalators with confidence.
Elevator and Escalator control systems are the central command that ensures the safe, efficient, and reliable movement of people and goods. They manage all functions, from user commands and door operations to speed regulation and safety features. By handling these complex tasks, these control systems are vital for passenger safety, efficient traffic flow, and the overall operational integrity of vertical transport.
Elevators and Escalators are vulnerable to mechanical failures, such as worn parts and broken steps, and electrical issues like power failures or faulty wiring. Inadequate maintenance can accelerate component wear and increase the frequency of breakdowns. Furthermore, for high-rise buildings that require compact and lightweight control panels, traditional components like bulky and heavy terminal blocks pose a significant challenge for optimizing space and reducing overall weight.

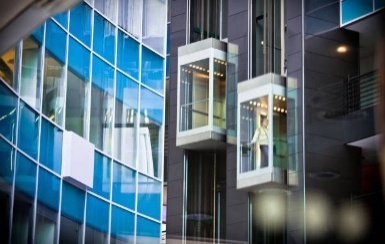

Elevator

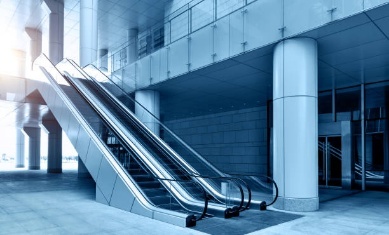

Escalator
Slim relay (6.2 mm) is essential, offering a compact, space-saving design ideal for high-density control cabinets with limited panel space. Available in screw and push-in connection technologies, these relays feature a 1 C/O changeover configuration that serves as a crucial interface, providing robust electrical isolation between low-power control circuits and high-power load circuits. This allows them to efficiently switch a single electrical circuit between two states.
Modular relay (14.5 mm) is a crucial safety component that uses a low-voltage control signal to safely manage high-power circuits for essential functions. Designed with reliable screw connection technology, it controls two independent circuits simultaneously, allowing for the switching of motor, activation essential interlocks. By isolating sensitive control logic from the heavy-duty machinery, this modular relay ensures reliable and safe functionality.

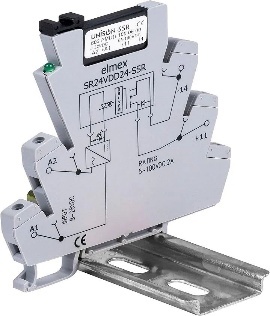

Slim Relay

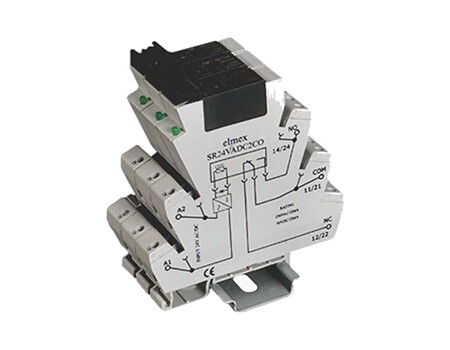

Modular Relay
Elmex provide phase indicator that ensure smooth and safe operation with real-time monitoring of phases. These devices indicate the presence of phase—all in a compact design that fits seamlessly into high-density control panels.
Single Phase
Three Phase
Reliable, maintenance-free electrical connections are essential in high-motion environments like elevator and escalator control systems. Push-in technology allows tool-free wire insertion, dramatically reducing installation time and simplifying wiring in high-density control cabinets.
Spring-clamp technology uses a pre-stressed spring to press the wire firmly against the current bar, offering high pull-out force and exceptional stability. Screw-clamp technology features interlocking lips on the contact clamp to prevent thread damage and deformation from overtightening.
A unique current-bar design with a recessed anchor for hook-bladed cable lugs further prevents accidental pull-outs once clamped, guaranteeing safe and reliable operation.
On-delay timers wait for a set time before activating an external load. In elevators, they create a brief pause after a "door close" button is pressed. In escalators, when a sensor detects a person, the timer starts a brief countdown before the escalator moves, preventing unnecessary operation and saving energy.
Off-delay timers keep an external load powered for a preset time. In elevators, door timers keep doors open for a set duration, resetting when the "door open" button is pressed. In escalators, the timer ensures the escalator continues to run for a few seconds after the last person gets off.
Star-delta timers are designed to reduce the massive surge of power by initially starting the motor in a "star" connection and then switching it to a full-power "delta" connection after a precise pause delay.
Elmex also provide versatile multifunction timers, which combine multiple timing functions like on-delay, off-delay, interval, and cyclic timing into a single device.

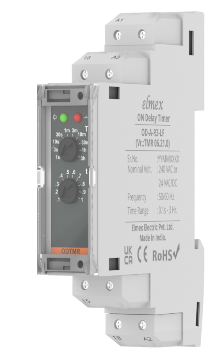

On-Delay Timer
Off-Delay Timer
Star-Delta Timer
Multifunction Timer
